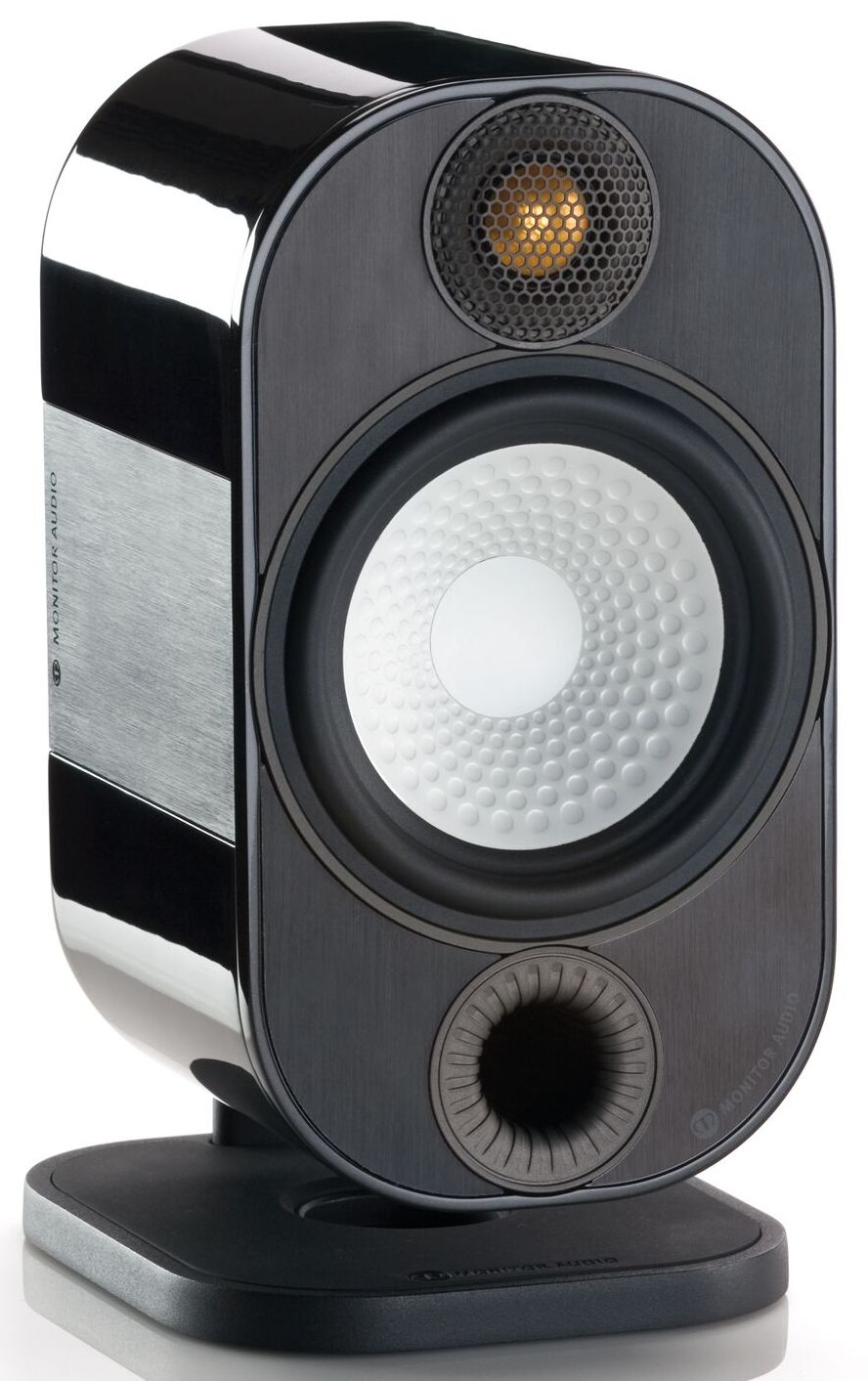

Monitor Audio Apex Series Black High Gloss Bookshelf Speaker
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 0
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 1
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 2
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 3
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 4
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 5
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 6
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 7
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 8
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 9
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 10
Monitor Audio Apex Series Black High Gloss Bookshelf Speaker 11

Monitor Audio Apex Series Black High Gloss Bookshelf Speaker

Model #: AX10B
252619
Monitor Audio
At a Glance
The ultimate style speaker, combining the best of Monitor Audio technology in a stylish, compact and rigid die-cast alloy cabinet.
$NaNSave $NaN
Color Finish Name
Black High Gloss

Black High Gloss

---

Metallic Pearl White High Gloss

Metallic Pearl White High Gloss

---

Get to know this product.

Technology

  • 51/2" C-CAM Driver with RST dimpled cone geometry for rigidity
  • 1" Gold C-CAM Tweeter
  • HiVe II High Velocity reflex port; delivers smoother airflow for better transient response and tighter bass
  • Dedicated Internally Wired Stand available
  • Can be mounted on wall, ceiling or table top with dedicated robust bracket
  • Magnetic Grilles; for the sleekest effect there are no visible fixings
  • Rigid die-cast alloy cabinet
  • Finished in luxurious metallic black high gloss or metallic pearl white high gloss
  • This product is now available to use with home theatre design software, The CEDIA Designer.
Useful Documents
Brochure
Instruction Manual
Owners Manual
Safety Instructions
Specifications

General

Frequency Response60 Hz — 35 kHz
Sensitivity (1W@1M)87 dB
Drive Unit Complement1 x 140 mm (5.5") RST mid-bass driver, 1 x 25 mm (1") C-CAM Gold Dome tweeter
Nominal Impedance8 ohms
Maximum SPL110.8 dBA
Recommended Amplifier Requirements25 — 100 W
Bass AlignmentFront ported - bass reflex. HiVE II port system
Power Handling (RMS)100 W
Crossover Frequency3.0 kHz
External Dimensions (Cabinet Only (H x W x D))250 x 140 x 140 mm (9.82 x 5.5 x 5.5")
External Dimensions (Including Table Stand (H x W x D))280 x 150 x 180 mm (11 x 5.88 x 7.06")
Weight (each)3.95 kg (8lb 11 oz)

Misc. Specs

Product Weight (lbs.)8.75
Manufacturer Warranty5 Year
RMS Power Handling (Watts)100
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)100
Number of Speakers1
Depth (in.)5.5
Height (in.)5.5
Width (in.)9.81
Woofer Size5"
