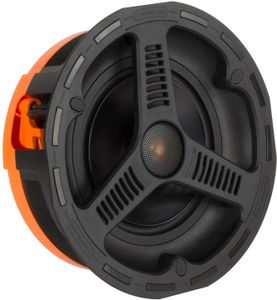

Monitor Audio AWC265 Weather Resistant In-Ceiling Speaker

Monitor Audio

Model #:

AWC265

Model #: AWC265
272881
Monitor Audio
$99,999.00

At a Glance

Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC265 comprises a stylish two-way 6 1/2” C-CAM bass driver.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Optional square grille can be used with this model.

Quick and easy installation

High Performance C-CAM bass and high frequency drivers

Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion

Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion

IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion

Patented Tri-grip Dog-leg fixings for easy, long-lasting installation

EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)

Gold plated push terminals with silicon cover

Stainless fixing screws with Silicone covers

Tweeter level attenuation (internal) – set prior to installation

Applications: pool rooms, bathrooms, marine deck, universal outdoor installation

This product is now available to use with home theatre design software, The CEDIA Designer.

Useful Documents
Brochure
Installation Guide
Product Guide
Manual
Warranty
Safety Instructions
Specifications

General Specs

Product Weight (lbs.)4.5
Frequency Response60 Hz — 30 kHz
Color Finish NameBlack
Outdoor ApprovedYes
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)60
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)60
Number of Speakers1
Sensitivity88
Speaker TypeIn-Ceiling Speakers

Additional Specifications

Frequency Response60 Hz — 30 kHz
Sensitivity (1W@1M)88 dB
Nominal Impedance8 ohms
Maximum SPL105.8 dBA
Power Handling (RMS)60 W
Recommended Amplifier Requirements20 — 60 W
Drivers6.5" C-CAM cone bass driver, 1" C-CAM Gold Dome tweeter (fixed angle)
ControlsHF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Adjustment Controls2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille)251.71 mm (915/16")
Overall Depth (Including Grille)93.5 mm (31/2")
Cut-Out Hole Diameter211 mm (81/4")
Mounting Depth88.5 mm (31/2")
Optional Square Grille - Outer Dimensions249 x 249 mm (9 3/16")
Fixing Type3 position Tri-Grip dog leg fixings
Construction MaterialMineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
GrilleSS430 Stainless Steel
MagnetsSamarium Cobalt
Operating Temperature Range-34° to 79° C -29° to 174° F
Weight2.04 kg (4 lb 8 oz)
Pre-Construction BracketCB6 Pre-Construction Bracket (Purple)
Back BoxCCBOX-R | CMBOX-R
WarningProposition 65 Warning for California Residents
