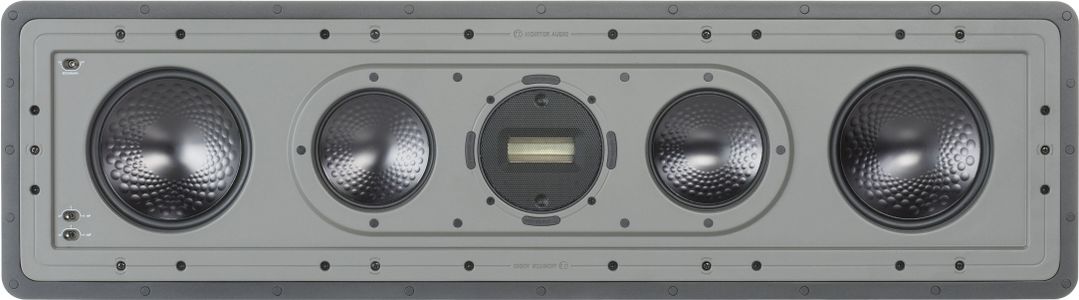

Monitor Audio CP-IW460X In-Wall Speaker

Model #: CPIW460X

At a Glance

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

WarningProposition 65 Warning for California Residents
Monitor Audio CP-IW460X In-Wall Speaker

General Specs

Product Weight (lbs.)2.38
Frequency Response50 Hz - 60 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)150
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)150
Number of Speakers1
Sensitivity89
Speaker TypeIn-Wall Speakers

Additional Specifications

Frequency Response50 Hz - 60 kHz (-6 dB typical in room response)
Nominal Impedance6 ohms
Sensitivity (1W@1M)89 dB
Maximum SPL113.8 dBA
Power Handling (RMS)150 W
Recommended Amplifier Requirements60 - 150 W
Crossover FrequencyL.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
Drive Unit Complement2 x 6.5” C-CAM Bass drivers with RST cone technology, 2 x 4” C-CAM Mid-range drivers with RST cone technology, 1 x C-CAM H.F ribbon transducer
Adjustment ControlsBoundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
Overall Dimensions (H x W x D)907 x 257 mm (35 3/4 x 10 1/8")
Overall Depth (Including Grille)102 mm (4")
Cut-Out Dimensions880 x 230 mm (34 21/32 x 9")
Mounting Depth96 mm (3 3/4")
Fixing Type10 x Tri-Grip Dog leg fixings
Construction MaterialCast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)
Weight12.98 kg (28 lb 6 oz)
Pre-Construction BracketWB12 Pre-Construction Bracket (Green)

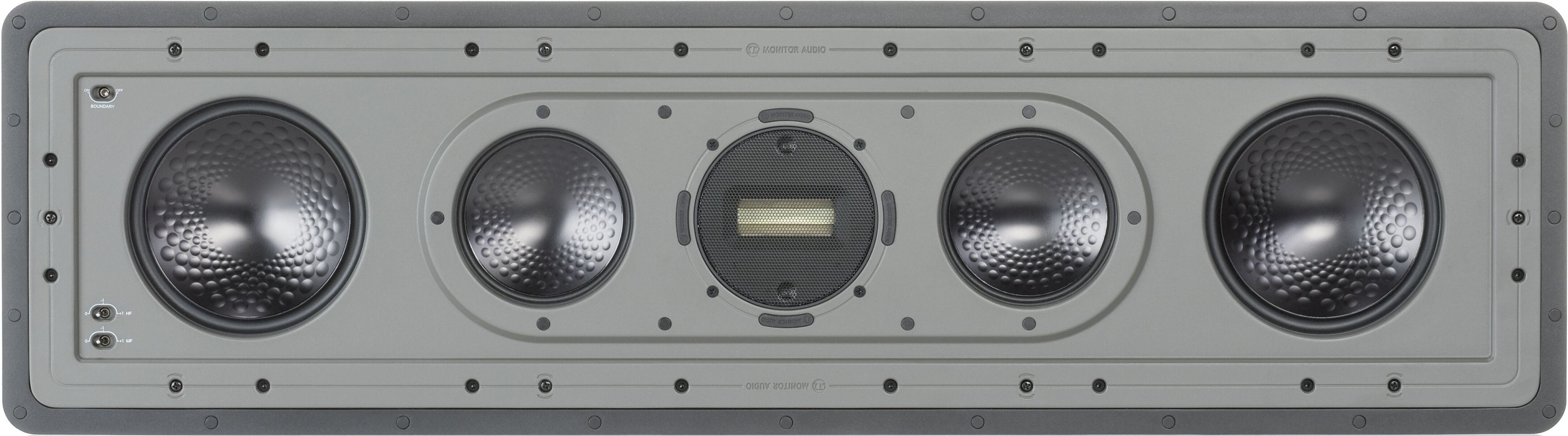

Monitor Audio CP-IW460X In-Wall Speaker

Model #: CPIW460X
273538
Model #: CPIW460X
Monitor Audio
$99,999.00

Call for Best Price

At a Glance

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

Get to know this product.

The CP-IW460X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5" bass drivers and twin 4" mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.

Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology

Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations

Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies

C-CAM Ribbon High Frequency transducer

Innovative HF rotating system to facilitate portrait or landscape orientation

Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’

Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties

High overall efficiency and maximum SPL for powerful home theatre installations

High power handling

Three-way design in a symmetrical ‘B-M-T-M-B’ configuration

High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing

Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

General Specs

Product Weight (lbs.)2.38
Frequency Response50 Hz - 60 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)150
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)150
Number of Speakers1
Sensitivity89
Speaker TypeIn-Wall Speakers

Additional Specifications

Frequency Response50 Hz - 60 kHz (-6 dB typical in room response)
Nominal Impedance6 ohms
Sensitivity (1W@1M)89 dB
Maximum SPL113.8 dBA
Power Handling (RMS)150 W
Recommended Amplifier Requirements60 - 150 W
Crossover FrequencyL.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
Drive Unit Complement2 x 6.5” C-CAM Bass drivers with RST cone technology, 2 x 4” C-CAM Mid-range drivers with RST cone technology, 1 x C-CAM H.F ribbon transducer
Adjustment ControlsBoundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
Overall Dimensions (H x W x D)907 x 257 mm (35 3/4 x 10 1/8")
Overall Depth (Including Grille)102 mm (4")
Cut-Out Dimensions880 x 230 mm (34 21/32 x 9")
Mounting Depth96 mm (3 3/4")
Fixing Type10 x Tri-Grip Dog leg fixings
Construction MaterialCast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)
Weight12.98 kg (28 lb 6 oz)
Pre-Construction BracketWB12 Pre-Construction Bracket (Green)
