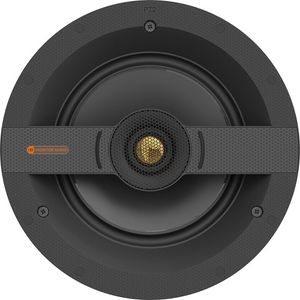

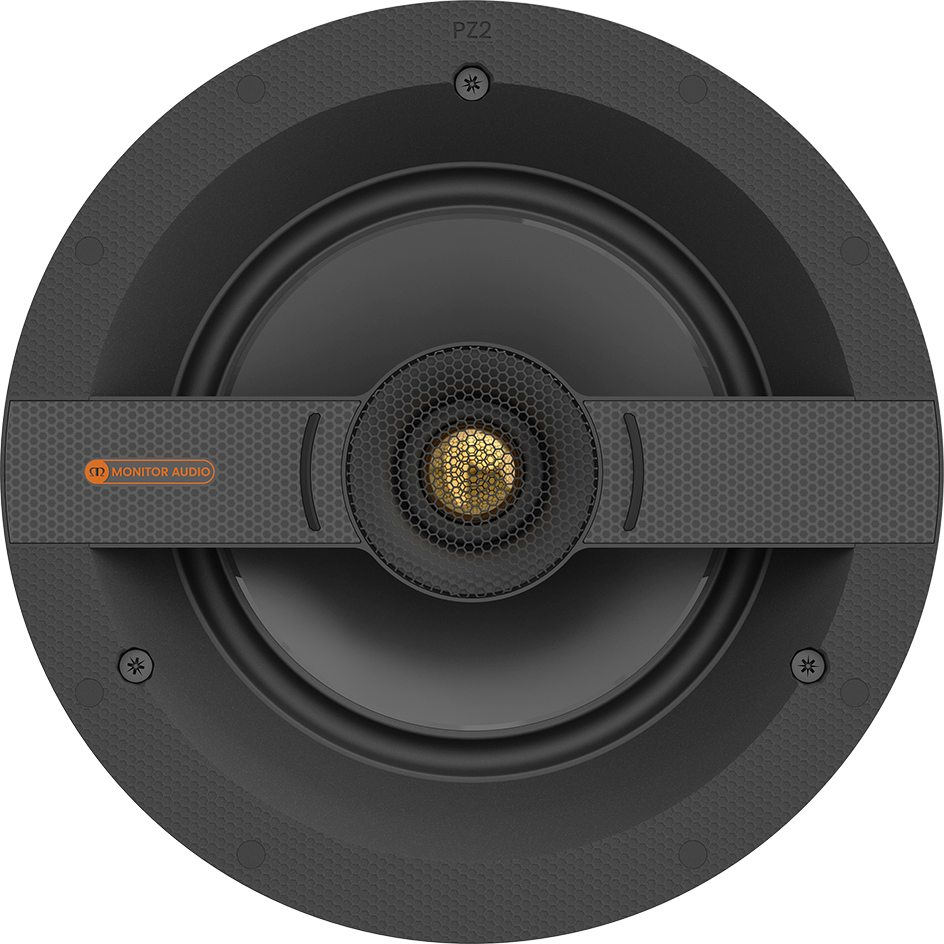

Monitor Audio Creator Series 7" Matte Black In Ceiling Speaker


Model #:

CSC1M

At a Glance

This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 212 mm, revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

This medium-sized Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionizes the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Key Features

Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required

Two-way design

1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound

1 x 7" (178 mm) C-CAM mid-bass driver for clear mid-range and full bass

Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)

Tri-Grip II for easy and secure fitment

Useful Documents
Specifications

General Specs

Cut Out Depth3.88
Cut Out Width8.38
Cut Out Height8.38
Color/Finish NameMatte Black
Speaker Depth (in.)4.25
Speaker Width (in.)9.5
Speaker Height (in.)9.5
Speaker Weight (lbs)4.19
Frequency Response35 Hz – 30 kHz
Manufacturer WarrantyLimited Lifetime
CollectionCreator Series
Max Sound Level Db113
RMS Power Handling (Watts)65
Impedance8 ohms
Number of Speakers1
Sensitivity86
Speaker TypeIn-Ceiling Speakers
