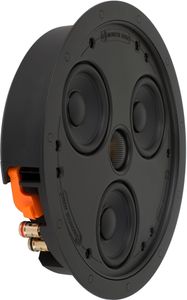

Monitor Audio CSS230 In-Ceiling Speaker

Model #: CSS230

At a Glance

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.

WarningProposition 65 Warning for California Residents
Monitor Audio CSS230 In-Ceiling Speaker

General Specs

Product Weight (lbs.)6.31
Frequency Response100 Hz – 30 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)40
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)40
Number of Speakers1
Sensitivity86
Speaker TypeIn-Ceiling Speakers

Additional Specifications

Frequency Response (-6 dB)100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back)
Nominal Impedance8 ohms
Sensitivity (1W@1M)86 dB
Maximum SPL103.8 dBA
Power Handling (RMS)40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements10 - 60 W
Drive Unit Complement3 x 3" C-CAM cone bass-mid drivers, 1 x 19 mm (3/4") C-CAM Gold Dome tweeter
Crossover Recommendation100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
ConnectionGold Plated Sprung push terminals – for bare wire connection up to 4 mm(2)
Overall Diameter (Including Grille)250 mm (9 13/16")
Overall Depth (Including Grille)54 mm (2 1/8")
Cut-Out Hole Diameter211 mm (8 1/4")
Mounting Depth50 mm (2")
Optional Square Grille - Outer Dimensions249 x 249 mm (9 3/16")
Fixing Type3 position Tri-Grip dog leg fixings
Construction MaterialABS (UL94 rated, RoHS2 Compliant) – Painted steel grille
Weight2.88 kg (6 lb 5 oz)
Pre-Construction BracketCB6 Pre-Construction Bracket (Purple)

Monitor Audio CSS230 In-Ceiling Speaker

Model #: CSS230
273797
Model #: CSS230
Monitor Audio
$99,999.00

Call for Best Price

At a Glance

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.

Get to know this product.

Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.

In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.

Optional square or premium grille can be used with this model.

Super-slim mounting depth 50 mm (2") designed to fit within 2” stud walls or where space is restricted

Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19 mm C-CAM Gold Dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality

Gold plated sprung push terminals are reliable and easy to connect

Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor

Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install

Existing CB6 pre-construction bracket for easier system design and planning

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

General Specs

Product Weight (lbs.)6.31
Frequency Response100 Hz – 30 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)40
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)40
Number of Speakers1
Sensitivity86
Speaker TypeIn-Ceiling Speakers

Additional Specifications

Frequency Response (-6 dB)100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back)
Nominal Impedance8 ohms
Sensitivity (1W@1M)86 dB
Maximum SPL103.8 dBA
Power Handling (RMS)40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements10 - 60 W
Drive Unit Complement3 x 3" C-CAM cone bass-mid drivers, 1 x 19 mm (3/4") C-CAM Gold Dome tweeter
Crossover Recommendation100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
ConnectionGold Plated Sprung push terminals – for bare wire connection up to 4 mm(2)
Overall Diameter (Including Grille)250 mm (9 13/16")
Overall Depth (Including Grille)54 mm (2 1/8")
Cut-Out Hole Diameter211 mm (8 1/4")
Mounting Depth50 mm (2")
Optional Square Grille - Outer Dimensions249 x 249 mm (9 3/16")
Fixing Type3 position Tri-Grip dog leg fixings
Construction MaterialABS (UL94 rated, RoHS2 Compliant) – Painted steel grille
Weight2.88 kg (6 lb 5 oz)
Pre-Construction BracketCB6 Pre-Construction Bracket (Purple)
