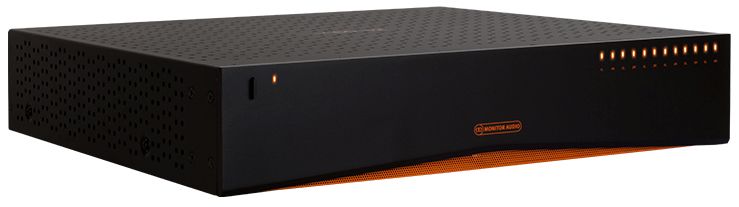

Monitor Audio IA60-12 Amplifier

Model #: IA6012

At a Glance

The IA60-12 powers up to 12 channels (6 stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology, this model takes our unrivalled experience of the custom installation sector, and delivers an audio engine ready to excel.

WarningProposition 65 Warning for California Residents
Monitor Audio IA60-12 Amplifier

General Specs

Depth (in.)16
Height (in.)3.44
Impedance20k ohms
Width (in.)17.25
Manufacturer Warranty5 Year
Product Weight (lbs.)16.13
ColorBlack

General

Channel Number12 (6 Stereo Pairs)
Power (W / Channel) | 4 ohms60 W
Power (W / Channel) | 8 ohms45 W
Power (W / Channel) | Bridge (8 ohms)100 W (6CH)
Input Impedance20 K ohms
Output Impedance (Loop RCA)600 ohms
Input Sensitivity100 mV / 1 W, 700 mV – Full power
Maximum Input Voltage2.9 V
Signal to Noise (SN:R)-100 dB (20 Hz – 20 kHz)
Frequency Response5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz0.03%
Rack Height2U
Dimensions (Excluding Feet (H x W x D))86.8 x 438 x 427 mm (3.44 x 17.25 x 16.82")
Dimensions (Including Feet (H x W x D))97.2 x 438 x 427 mm (3.82 x 17.25 x 16.82")
Width (including rack brackets)482 mm (19")
Mains Operating Voltage100 – 120 V @ 60 Hz; 220 – 240 V @ 50 Hz
Fuse Rating10 A (T10AL ~ 250VAC)
Standby Power Consumption<0.5 W (green mode)
Weight7.34 kg (16 lb 2 oz)

Monitor Audio IA60-12 Amplifier

Model #: IA6012
252194
Model #: IA6012
Monitor Audio
$99,999.00

Call for Best Price

At a Glance

The IA60-12 powers up to 12 channels (6 stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology, this model takes our unrivalled experience of the custom installation sector, and delivers an audio engine ready to excel.

Get to know this product.

From our line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully your project.

60 x 12 @ 4Ohms via Hypex Amplifier modules

2U Chasis

Stereo RCA in/out 6 Pair plus A & B Buss inputs and loop outs

Bridgeable

Useful Documents
Specifications

General Specs

Depth (in.)16
Height (in.)3.44
Impedance20k ohms
Width (in.)17.25
Manufacturer Warranty5 Year
Product Weight (lbs.)16.13
ColorBlack

General

Channel Number12 (6 Stereo Pairs)
Power (W / Channel) | 4 ohms60 W
Power (W / Channel) | 8 ohms45 W
Power (W / Channel) | Bridge (8 ohms)100 W (6CH)
Input Impedance20 K ohms
Output Impedance (Loop RCA)600 ohms
Input Sensitivity100 mV / 1 W, 700 mV – Full power
Maximum Input Voltage2.9 V
Signal to Noise (SN:R)-100 dB (20 Hz – 20 kHz)
Frequency Response5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz0.03%
Rack Height2U
Dimensions (Excluding Feet (H x W x D))86.8 x 438 x 427 mm (3.44 x 17.25 x 16.82")
Dimensions (Including Feet (H x W x D))97.2 x 438 x 427 mm (3.82 x 17.25 x 16.82")
Width (including rack brackets)482 mm (19")
Mains Operating Voltage100 – 120 V @ 60 Hz; 220 – 240 V @ 50 Hz
Fuse Rating10 A (T10AL ~ 250VAC)
Standby Power Consumption<0.5 W (green mode)
Weight7.34 kg (16 lb 2 oz)
