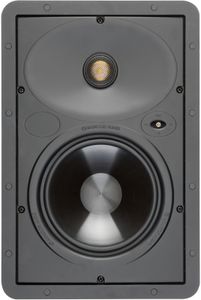

Monitor Audio W165 In-Wall Speaker

Monitor Audio

Model #:

CW165

Model #: CW165
273847
Monitor Audio
$99,999.00

At a Glance

Incorporating a 6 1/2" MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Optimum imaging and set-up

Pivoting tweeter

High-frequency (+3 dB / 0 dB /-3 dB) level adjustment

This product is now available to use with home theatre design software, The CEDIA Designer.

Useful Documents
Installation Guide
Manual
Warranty
Safety Instructions
Product Guide
Specifications

General Specs

Product Weight (lbs.)4.88
Frequency Response60 Hz – 25 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)65
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)65
Number of Speakers1
Sensitivity88.5
Speaker TypeIn-Wall Speakers

Additional Specifications

Frequency Response60 Hz – 25 kHz
Nominal Impedance6 ohms
Sensitivity (1W@1M)88.5 dB
Maximum SPL107.4 dBA
Power Handling (RMS)65 W
Recommended Amplifier Requirements20 – 65 W
Drive Unit Complement6 1/2" MMP II cone bass driver, 1" C-CAM pivoting Gold Dome tweeter
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille)370 x 250 mm (14 9/16 x 9 13/16")
Overall Depth (Including Grille)96 mm (3 3/4")
Mounting Depth92 mm (3 5/8")
Cut-Out Hole Diameter332 x 213 mm (13 1/16 x 8 3/8")
Fixing Type6 position Tri-Grip dog fixings
Construction MaterialMineral filled ABS, RoHS compliant
Weight2.21 kg (4 lb 14 oz)
Pre-Construction BracketWB6 Pre-Construction Bracket (Purple)
WarningProposition 65 Warning for California Residents
