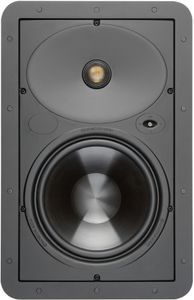

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.Read More
Optimum imaging and set-up
Pivoting tweeter
High-frequency (+3 dB / 0 dB /-3 dB) level adjustment
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 6.75 |
| Frequency Response | 50 Hz – 25 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 120 |
| Color | Black |
| Impedance | 6 ohms |
| Maximum Power Handling (Watts) | 120 |
| Number of Speakers | 1 |
| Sensitivity | 90 |
| Speaker Type | In-Wall Speakers |
Additional Specifications | |
| Frequency Response | 50 Hz – 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 8" MMP II cone bass driver, 1" C-CAM Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter (Including Grille) | 441 x 288 mm (17 3/8 x 1 15/16") |
| Overall Depth (Including Grille) | 104 mm (4 1/8") |
| Mounting Depth | 100 mm (3 15/16") |
| Cut-Out Hole Diameter | 387 x 234 mm (15 1/4" x 9 3/16") |
| Fixing Type | 6 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 3.08 kg (6 lb 12 oz) |
| Pre-Construction Bracket | WB8 Pre-Construction Bracket (Green) |
| Back Box | WCBOX-L |
