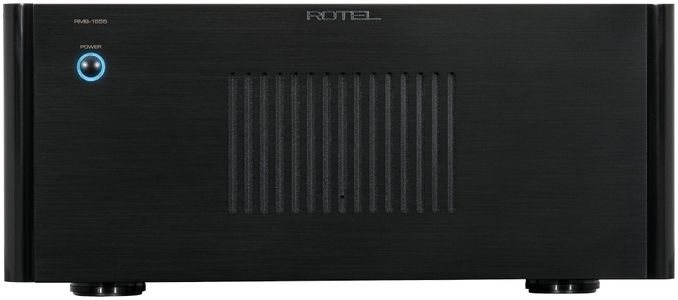

Rotel® 5 Channel Power Amplifier-Black

At a Glance

Rotel® 5 Channel Power Amplifier-Black with 5 x 120 watts of robust power and high quality slit foil capacitors made in Britain

Proposition 65 Warning for California Residents

With only slightly less power than its big brother, the RMB-1555 retains a very robust power supply to deliver 5 x 120 Watts per channel to medium and large home theaters.

The RMB-1555 is a remarkable multichannel amplifier with power output conservatively rated at 120 Watts per channel into 8 ohms (all channels driven!). With all but the most demanding speakers located in extraordinarily large rooms, the RMB-1555 exerts the kind of precise control that presents both nuance and bombast correctly from the faintest flute overtones to the subterranean rumble of an approaching apocalypse.

The RMB-1555 employs a high current, toroidal transformer matched to discrete output transistors with their higher thermal stability and freedom from the designed-in compromises that characterize their integrated circuit cousins. The Class AB amplifier configuration assures the best balance between power output and thermal efficiency.

Continuous Power Output: 120W/Ch (All channels driven, 8O)

Total Harmonic Distortion (THD)(20Hz–20kHz) <0.03%

Frequency Response: 10Hz - 100kHz +0.5, -3dB

Power Requirements 120V, 60Hz

S/N Ratio (IHF "A" Weighted): 116dB

Gain: 26.5dB
