Rotel® 6 Channel Custom Installation Amplifier
At a Glance
The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home.
Proposition 65 Warning for California Residents
Connections
| Speaker Connectors | Posts |
|---|
Features
| Multiple Zones | 3 |
|---|
Styling
| Color | Black |
|---|
Specifications
| Power On Consumption (watts) | 450 |
|---|---|
| Power Off Consumption (watts) | 2.6 |
| Signal to Noise Ratio | 115 dB |
| Watts RMS per Channel (4-ohms) | 80 |
| Watts RMS per Channel (8-ohms) | 50 |
Misc. Specs
| Depth (in.) | 16.7 |
|---|---|
| Height (in.) | 5.7 |
| Impedance | 8 ohms |
| Width (in.) | 17 |
| Channels | 6 |
| Analog Audio(RCA) Input | 3 |
| Color Finish Name | Black |
| Product Weight (lbs.) | 34 |
| Color | Black |

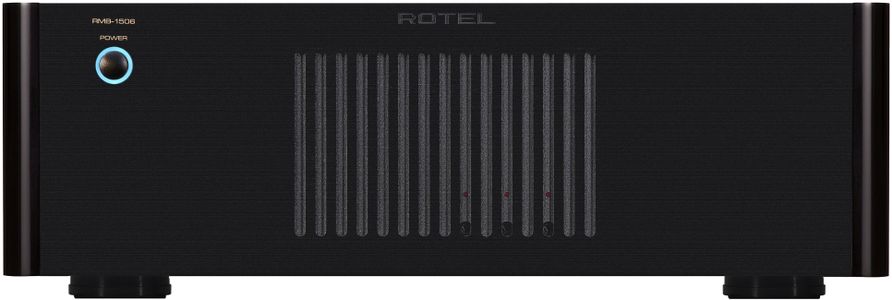

Rotel® 6 Channel Custom Installation Amplifier
Model #: RMB-1506
At a Glance
Get to know this product.
Featuring 6 x 50 watts per channel, the RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music.
The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.
As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.
Total Harmonic Distortion (THD)(20Hz–20kHz) <0.03%
Frequency Response: 10Hz - 100kHz ±1dB
S/N Ratio (IHF "A" Weighted): 115dB
Gain: 26dB
Power Requirements: 120V, 60Hz
Continuous Power Output
50W/Ch (All channels driven, 8O)
80W/Ch (All channels driven, 4O)
